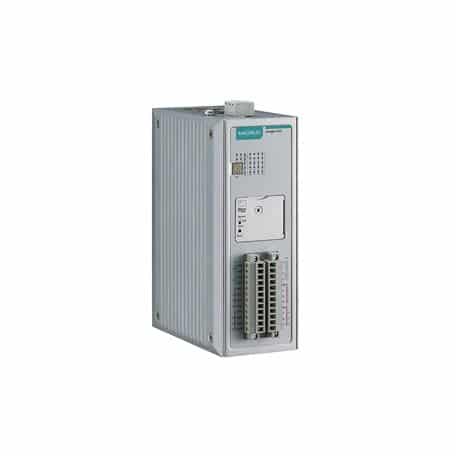

Descrizione IOLOGIK 2542-HSPA
Questo prodotto ha ottenuto una valutazione di 4.5 su 5 basato su 650 acquisti verificati
Specifiche Tecniche IOLOGIK 2542-HSPA
Scarica scheda tecnica IOLOGIK 2542-HSPAMemory
- microSD Slot
-
Up to 32 GB (SD 2.0 compatible)
Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
- Language
- Click&Go Plus
Input/Output Interface
- Configurable DIO Channels (by software)
- 12
- Analog Input Channels
- 4
- Buttons
- Reset button
- Isolation
- 3k VDC or 2k Vrms
Digital Inputs
- Connector
- Screw-fastened Euroblock terminal
- Sensor Type
-
Dry contact
Wet contact (NPN or PNP) - I/O Mode
- DI or event counter
- Dry Contact
-
On: short to GND
Off: open - Wet Contact (DI to COM)
-
On: 10 to 30 VDC
Off: 0 to 3 VDC - Counter Frequency
- 2.5 kHz
- Digital Filtering Time Interval
- Software configurable
- Points per COM
- 6 channels
Digital Outputs
- Connector
- Screw-fastened Euroblock terminal
- I/O Type
- Sink
- I/O Mode
- DO or pulse output
- Current Rating
- 500 mA per channel
- Pulse Output Frequency
- 5 kHz (max.)
- DIO Output Leakage Current
- < 1 mA @ 30 VDC
- Over-Current Protection
- 1.5 A per channel @ 25°C
- Over-Temperature Shutdown
- 175°C (typical), 150°C (min.)
- Over-Voltage Protection
- 45 VDC (typical)
Analog Inputs
- Connector
- Screw-fastened Euroblock terminal
- I/O Mode
- Voltage/Current
- I/O Type
- Differential
- Resolution
- 16 bits
- Input Range
-
±10 VDC
0 to 10 VDC
0 to 20 mA
4 to 20 mA
4 to 20 mA (with burn-out detection) - Accuracy
-
±0.1% FSR @ 25°C
±0.3% FSR @ -10 to 60°C - Sampling Rate
-
All channels: 400 samples/sec
Per channel: 100 samples/sec - Built-in Resistor for Current Input
- 120 ohms
- Input Impedance
- 1 mega-ohms (min.)
- Over-Voltage Protection
-
-25 to +30 VDC (power on)
-35 to +35 VDC (power off)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
- 4, 1 MAC address
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options
- Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
- Industrial Protocols
- CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap
- Management
- BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
- MIB
- Device Settings MIB
- Security
- HTTPS/SSL
- Time Management
- SNTP
LED Interface
- LED Indicators
- PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15), Wireless connection, Signal Status
Serial Interface
- Baudrate
- 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
- Connector
- 8-pin RJ45
- Data Bits
- 5, 6, 7, 8
- Flow Control
- None, RTS/CTS, XON/XOFF
- No. of Ports
- 2
- Parity
- None, Even, Odd
- Serial Standards
- RS-232, RS-422, RS-485
- Stop Bits
- 1, 2
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
- Industrial Protocols
- Modbus RTU Master
Cellular Interface
- Cellular Standards
- GSM, EDGE, GPRS, UMTS, HSPA
- Band Options
-
UMTS/HSPA 800 MHz / 850 MHz / 900 MHz / 1900 MHz / 2100 MHz
Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz - SIM Control Voltage
- 1.8 V, 3 V
- SIM Format
- Mini SIM
- Cellular Antenna Connectors
- 1 SMA female
Security Functions
- IPsec VPN
- DES, 3DES, AES-128, AES-192, AES-256
Platform
- Real-time Clock (RTC)
- Real-time clock with capacitor backup
Power Parameters
- Power Connector
- Screw-fastened Euroblock terminal
- No. of Power Inputs
- 1
- Input Voltage
- 12 to 48 VDC
- Power Consumption
-
311 mA @ 24 VDC
649 mA @ 12 VDC
166 mA @ 48 VDC
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP30
- Dimensions
- 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
- Weight
- 1,265 g (2.79 lb)
- Installation
- DIN-rail mounting, Wall mounting (with optional kit)
- Wiring
-
I/O cable, 16 to 26 AWG
Power cable, 12 to 24 AWG
Environmental Limits
- Operating Temperature
- -10 to 60°C (14 to 140°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Altitude
- 2000 m
Standards and Certifications
- EMC
- EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
-
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-5 Surge: Power: 2 kV - Vibration
- IEC 60068-2-6
- Shock
- IEC 60068-2-27
- Freefall
- IEC 60068-2-32
- Hazardous Locations
- ATEX, Class I Division 2
- Safety
- UL 508
- Radio
- EN 301 489-1/17
- Radio Frequency
- EN 301 908, EN 301 489-24, EN 301 511
Declaration
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- 378,154 hrs
- Standards
- Telcordia SR332
Warranty
- Warranty Period
- 5 years
